Description

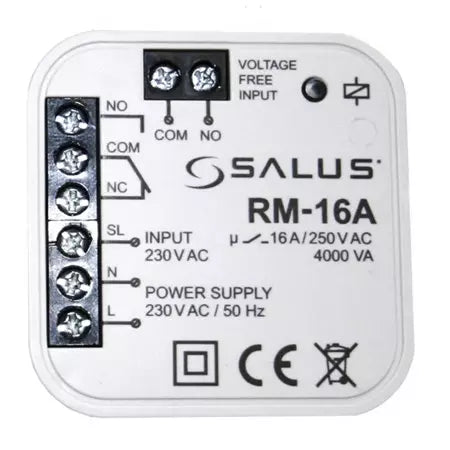

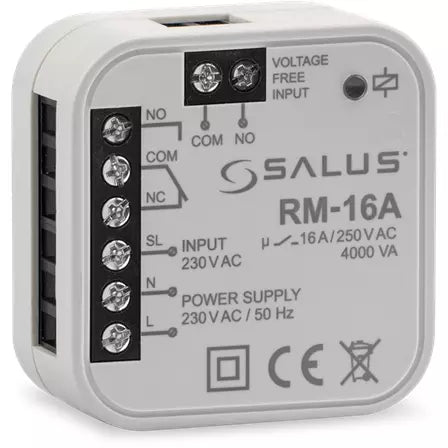

Salus RM-16A Relay Module
The RM-16A relay module is used to enable / disable electrical devices. Thanks to its small dimensions, it can be mounted in a flush-mounting box, or where there is a need to control a receiver with a maximum load of 16 A.
Example use:
• Control of a heating device (ON-OFF type) by 230V AC voltage signal from thermostat from EXPERT NSB, HTR, BTR series (e.g. VS30 / HTRP / BTRP).
• Control of a solid-fuel boiler (which requires an NC/COM contact) by connecting a temperature thermostat with a COM/NO output to the RM16-A relay module (e.g. T105).
• Connecting a receiver which needs more power than the thermostat relay allows. The maximum current consumption of an electrical device should not exceed 16A.
• To relieve wiring centre's relay (KL06 / KL08NSB / KL08RF) when more actuators are connected than allowed or other devices than thermoelectric actuators are plugged into the wiring centre's zone outputs (e.g. pumps, motor valves, electric heating mats).
Technical Specifications
| Power supply | 230V AC 50 Hz |
| Rating Max | 16 A / 250V AC |
| Voltage free NO / COM input | Connection of a thermostat with a NO / COM voltage free relay |
| SL voltage inputs | Connection of a thermostat with a 230V AC |
| Output signal | NO/COM/NC relay |

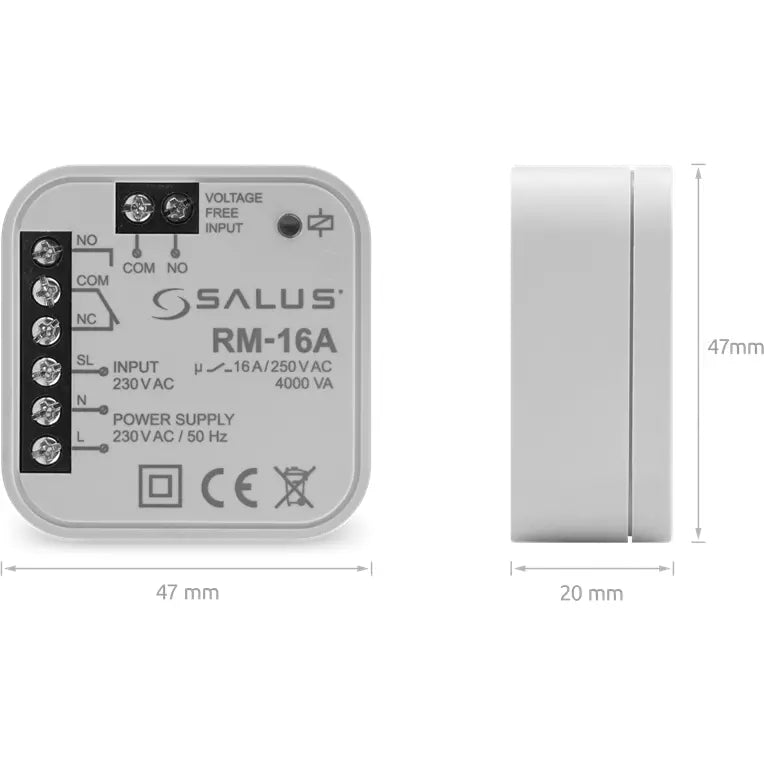

| Dimension [mm] | 47 x 47 x 20 |
